Content of Technology development

Preexistence Technology

Output of the compensation value by Manufacturing experience  ➤  Increase of a number of Q-loop and cost of manufacturing

Output of the compensation value by Manufacturing experience
▼
Increase of a number of Q-loop and cost of manufacturing

Developed Technology

• Technology partnership for MP and manufacturing skill with Japanese : Specialized company for High strength steel
• Suggest Q-loop technology and Methodology by Part character → CAE precision is compulsory

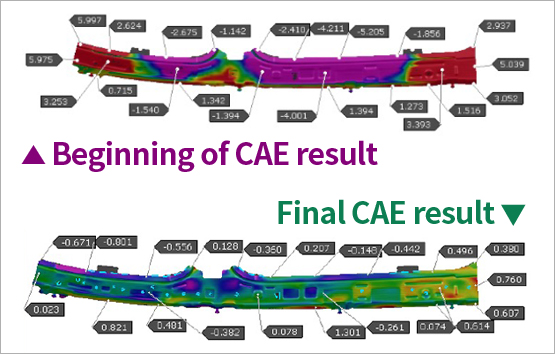

• Apply CAE result to machining data → Compare Scanning of part to CAE result

Background of Technology development

• Need to manufacture the die for Specialized Part with 980MPa~1180MPa High strength steel material
• Need CAE precision for the beginning by high in Q-loop and Compensation value on High strength steel
• Proceed with the proper Q-loop by Part character

Contribution

• Decrease of manufacturing cost and improve the die quality by reducing : Q-loop times → Achieve Pre-deadline for delivery
• Accuracy of CAE and Improve the engineering skill
• The average number of Q-loop : 36 times → 16 times (55.5% reduction)
